Advanced Recloser Control

The SEL-651R offers exceptional protection and communications capabilities for Automatic Network Reconfiguration, single- and three-phase tripping, and other distribution automation needs. The SEL-651R is the first recloser control to support IEEE 1547-2018 and fast islanding detection for distributed energy resource (DER) interconnections. It also has unique capabilities to detect inrush conditions with a second-harmonic-blocking element and detect downed conductors with optional Arc Sense technology (AST). These capabilities help you maintain reliable service to as many customers as possible in the event of a fault.

Design Template Guides

Recloser Compatibility

Installed Accessories

Field-Installed Accessories

Starting At

$5,850 USD

Request a Follow-Up


Customer Outage Minimization—Reduce system and customer impacts with single- and three-phase tripping and reclosing. You can improve reliability by maintaining service to customers who are not on the faulted phase of the feeder.

Communications-Assisted Protection Schemes—Integrate the SEL-651R into either Ethernet- or serial-based communications networks with standard DNP3 and Modbus protocols or optional IEC 61850. You can use communications for local and remote engineering access, SCADA, real-time protection and control, loop restoration, islanding detection, blocking, and fast bus tripping schemes.

High-Impedance Fault Detection—Detect downed conductors and high-impedance faults with the optional AST. Learn more about this exciting technology. Also, see how high-impedance fault detection can accelerate your wildfire mitigation plans.

Distributed Generation Protection—Protect both the utility and the independent power producer with one low-cost device. You can control DER interconnections with IEEE 1547-2018 protection and synchronization and innovative SEL fast islanding detection.

Inrush Detection—Detect transformer energization or motor startup, and block tripping for inrush conditions with a second-harmonic blocking element. The harmonic detection element lets you block selected tripping elements until the inrush subsides.

Load Shedding—Use underfrequency and undervoltage elements to implement basic load-shedding schemes. For more advanced load-shedding schemes, rate-of-change-of-frequency (ROCOF) elements can shed load for increasing or decreasing frequency.

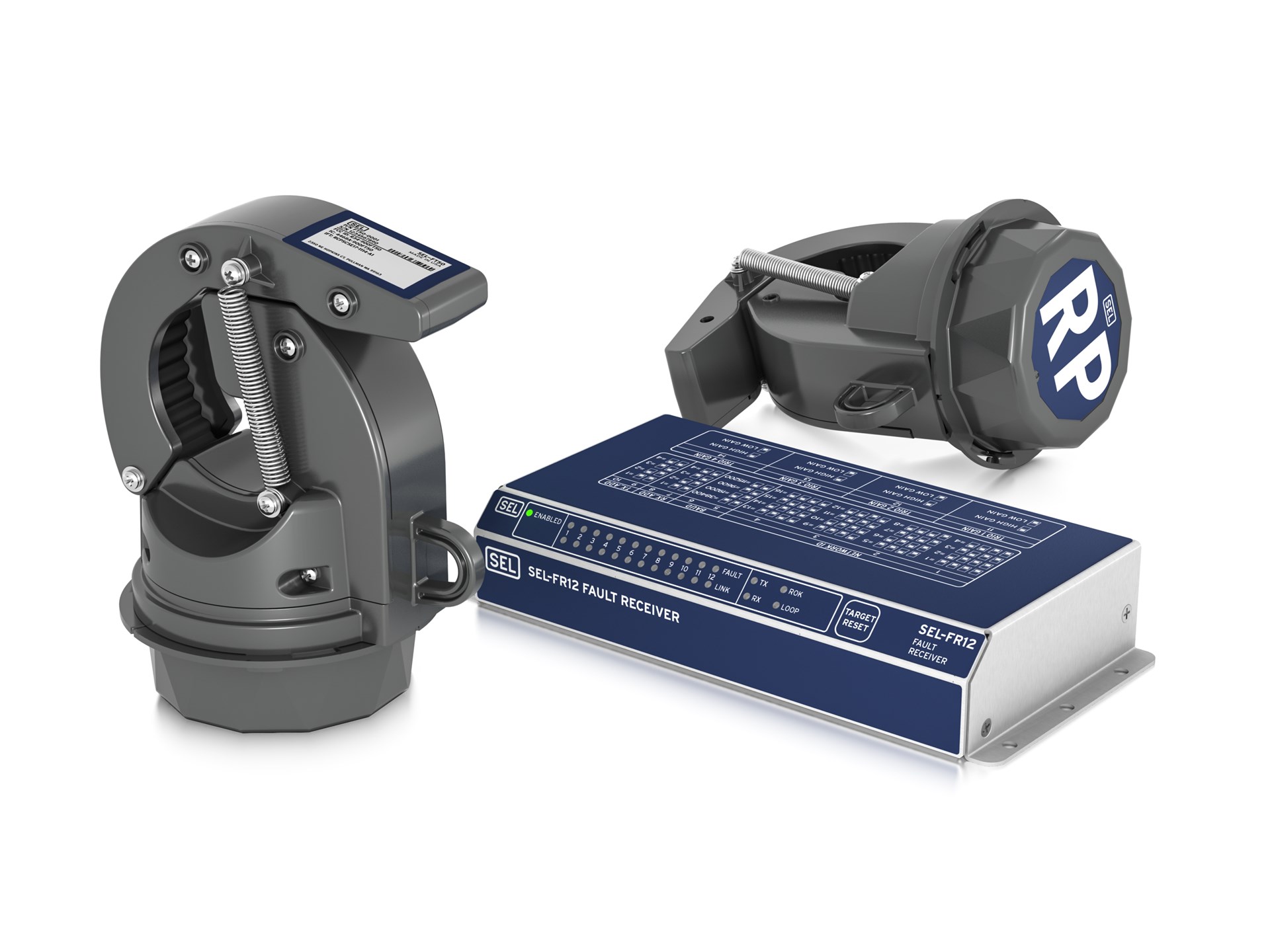

Speed Up Distribution Protection—Combine the SEL-FT50 and SEL-FR12 Fault Transmitter and Receiver System with the SEL-651R for more intelligent protection. The SEL-FT50 Fault Transmitters, located on branches, laterals, and the main line, will wirelessly communicate the fault location to the SEL-651R in 6 ms. This allows both fast tripping for main-line faults as well as fuse-saving and fuse-blowing schemes on the same feeder.

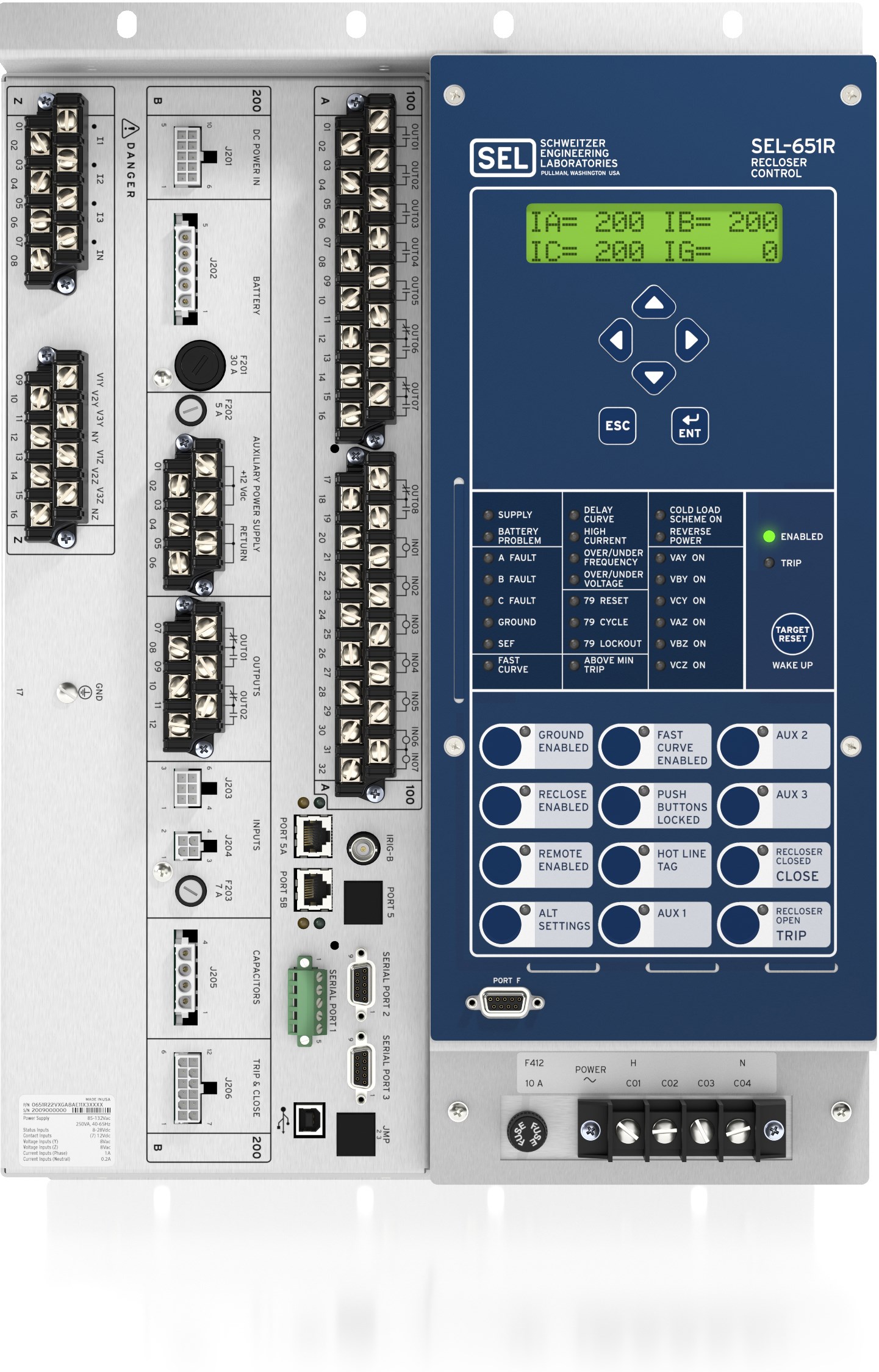

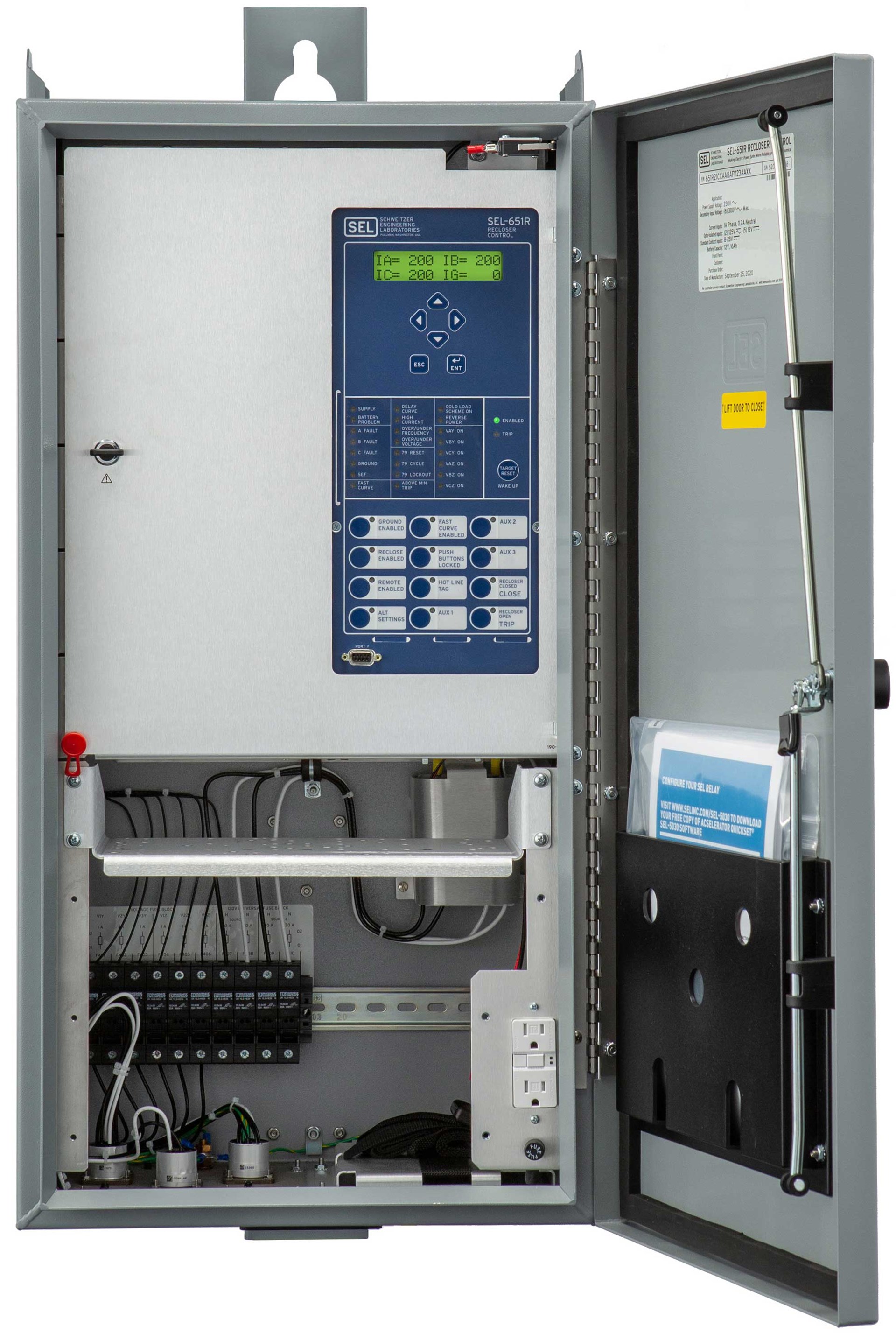

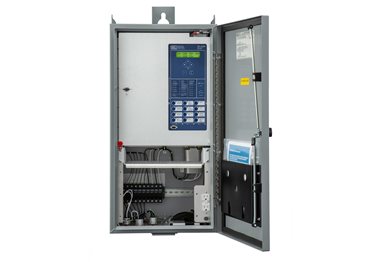

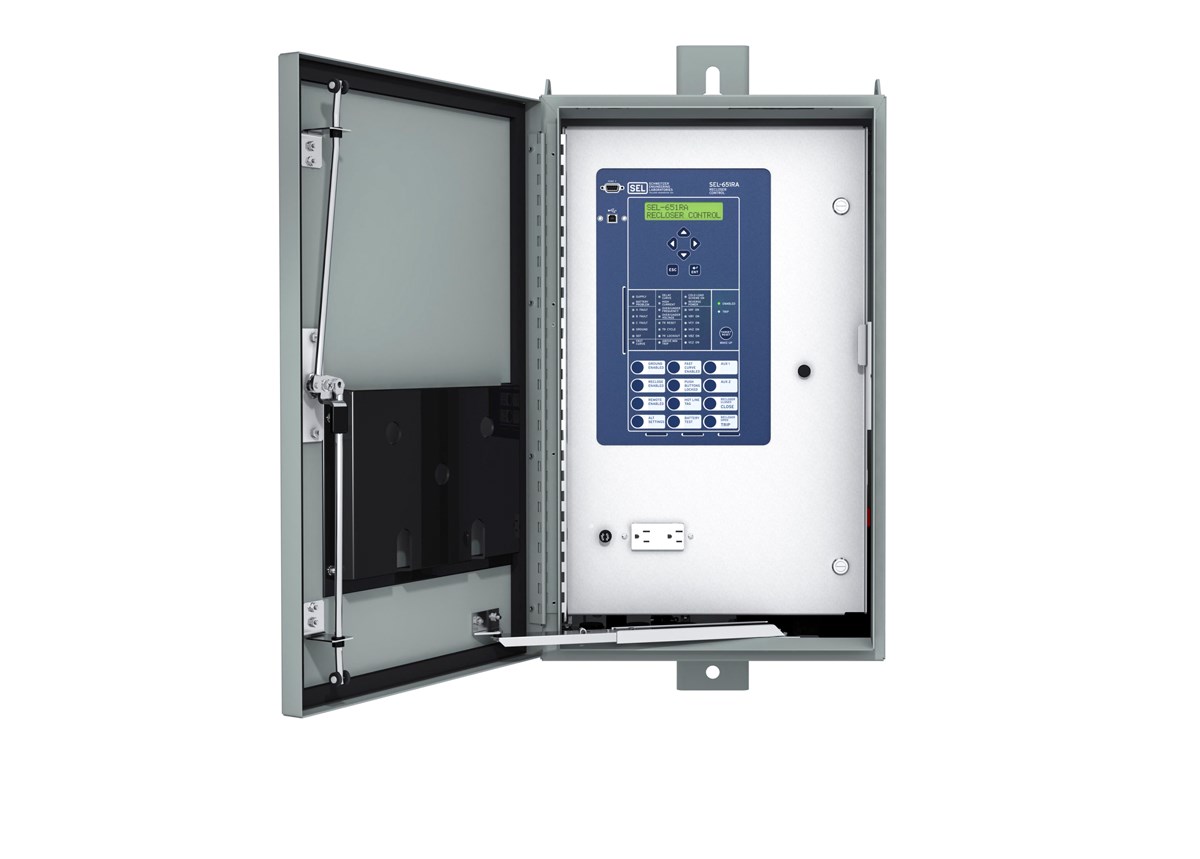

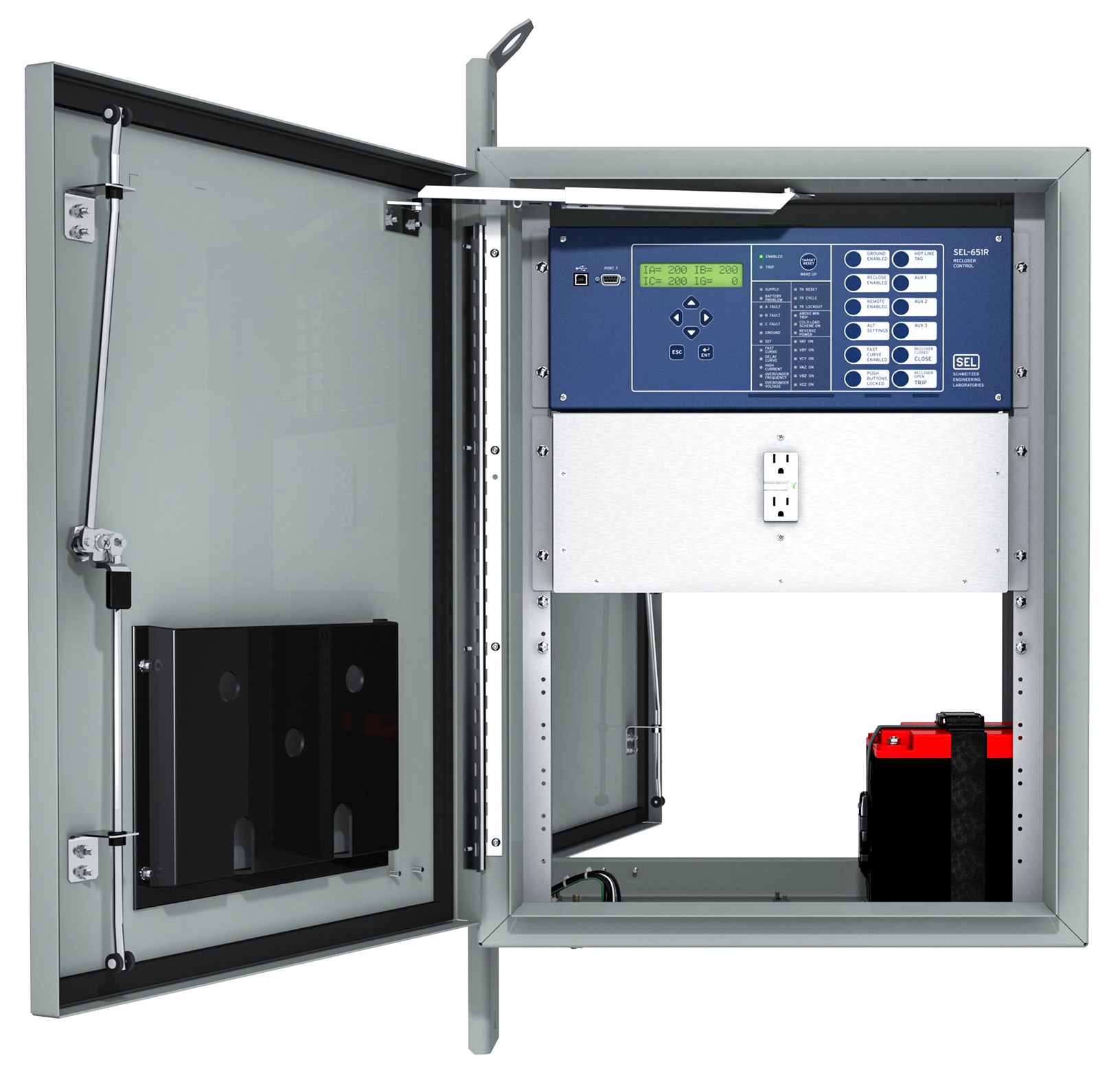

651R-front651R Chassis Visual

Control Cable Interface
Select control interfaces for reclosers from ABB, Eaton (Cooper), G&W, Hawker-Siddeley, Siemens, and Tavrida. See the Recloser Compatibility tab to learn more about the supported recloser models.

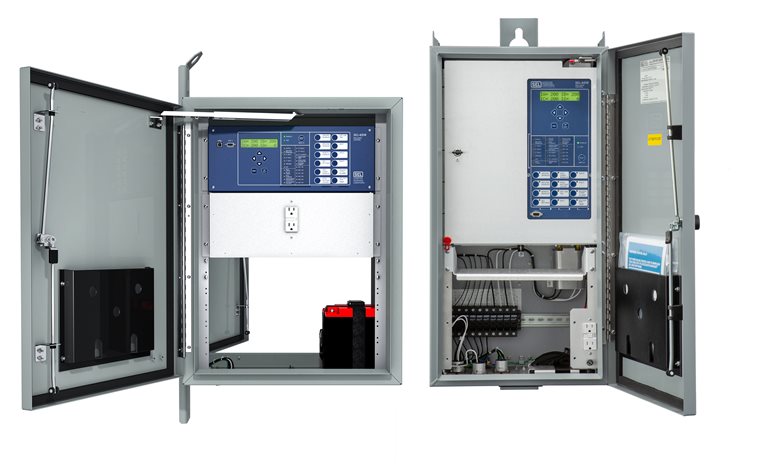

Select the painted stainless steel versions of our enclosures for superior corrosion resistance, especially in areas prone to salt or other corrosive chemicals.

Low-Energy Analog (LEA) Voltage Inputs
Reduce costs and save space with LEA voltage inputs. You can use LEA inputs for three or all six voltage input channels. The SEL-651R supports many popular reclosers that have sensors built right into the recloser bushings (eliminating the need to hang and wire potential transformers to measure the line voltages).

High-Impedance Fault Detection
Detect more high-impedance faults than with traditional protection by using AST.

Additional Inputs and Outputs
Add seven inputs and eight outputs. Options include: seven 12 V inputs with five Form A outputs and two Form C outputs, or two 125 V inputs and five 12 V inputs with five Form A outputs and two Form C outputs.

Choose from single-fiber or dual-redundant fiber Ethernet port upgrade options.

IEC 61850
Easily integrate the SEL-651R into your IEC 61850 communications systems.

Power Supply
Select from 230 Vac, 125 Vdc, or 48 Vdc alternatives to the standard 120 Vac power supply.

Upgrade to the 40 Ah extended capacity battery to increase your operation time after a loss of ac power.

Configurable Labels
Customize your control pushbutton and target LEDs to match your application and workflow with the user-configurable label insert kit.

Tricolor LEDs
Program the pushbutton and target LEDs to display as red, amber, or green to meet your application needs and preferences.

Select one of the accessories from our published list, or contact us with your specific needs.
