SEL-2431

Voltage Regulator Control

The SEL-2431 Voltage Regulator Control is compatible with most 32-step, single-phase voltage regulators manufactured in North America. Use various hinge and wiring kits to easily upgrade existing controls without removing the regulator from service, or order the SEL-2431 in a preconfigured enclosure for simplified installation. Quickly integrate the SEL-2431 into Ethernet or serial communications networks using fiber or copper options.

Retrofit Replacement Kits

Starting At

$1,270

Configure

View Popular Models

Request a Follow-Up

How can we help you?*

(0/250)

First Name*

Last Name*

Business Name*

Country*

City*

State*

Business Phone

Business Email*

*Required

Request a Follow-Up

Optimize System Voltage—Control system voltage with directional voltage profiles and detailed tap change event reports.

Install Into Multiple Power System Types—Configure operating modes to fit your application: locked-forward, locked-reverse, idle-reverse, bidirectional, cogeneration, or FlexDG.

Apply in Systems With Multiple Sources Including Distributed Generation—FlexDG mode detects whether reverse power flow is coming from cogeneration/DERs or the traditional power source. It can use the change in voltage following a tap and the direction of current in deciding which side to regulate. Bias mode can be applied with FlexDG, cogeneration, and bidirectional modes to improve voltage regulation in low-current conditions.

Track Tap Position Accurately—Monitor motor current and holding switch status for accurate tap position tracking.

Monitor Motor Current—Monitor and troubleshoot your voltage regulator with recorded tap change motor current waveforms.

Integrate Into Distribution Automation Networks—Integrate the SEL-2431 into Ethernet or serial communications networks with DNP3, SEL, and synchrophasor protocols. Both the serial and the Ethernet ports are available with copper and fiber-optic connection options.

Reduce Commissioning Time—Accelerate installation and commissioning with application-specific settings. Regulate voltage, apply advanced metering, and implement event recording capabilities with fewer than 20 settings.

Quickly Retrieve Data—Event reports, tap change history, load profile data, and Sequential Events Recorder (SER) data are all available through the USB port or other communications interfaces. You may also use the USB port to quickly transfer settings, upgrade firmware, and expand onboard storage capacity.

Install Easily With a Purpose-Built Enclosure and 19-Pin Interface—The SEL-2431 outdoor enclosure can be mounted to a single-phase voltage regulator, pole-mounted for midline installations, or remotely mounted in distribution substations. With preconfigured options for precise-timing devices and radio-ready communications equipment, the SEL-2431 enclosure offers a modernization path for advanced distribution management systems (ADMSs) and system-level volt/VAR optimization. The optional 19-pin universal interface supports multiple voltage regulator models with a single interface.

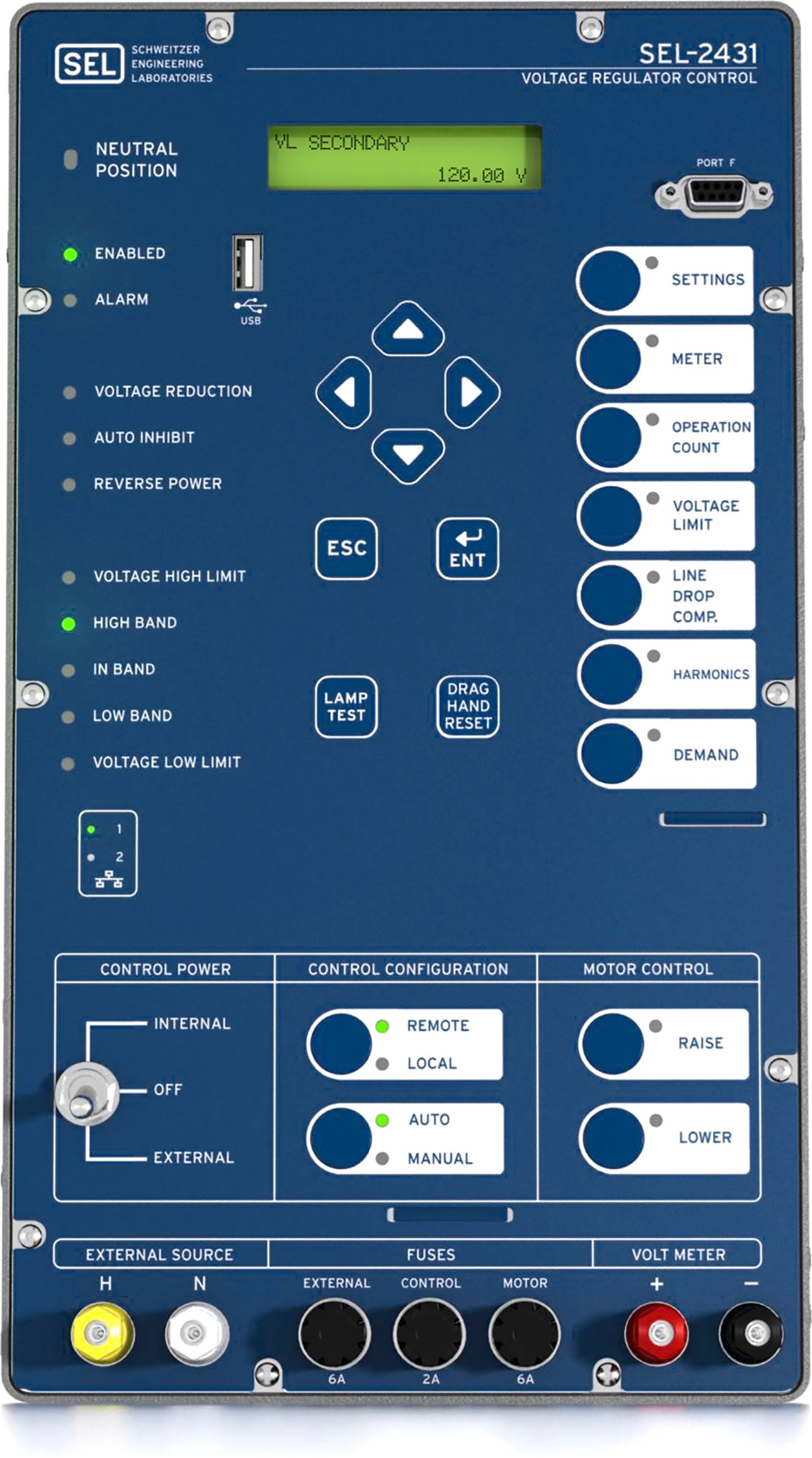

1. 1

  Neutral position indicator
2. 2

  Configurable display points
3. 3

  USB flash drive port
4. 4

  Simple menu navigation
5. 5

  Seven configurable pushbuttons and LEDs
6. 6

  System status indicators
7. 7

  Drag hand reset
8. 8

  Ethernet link indication
9. 9

  Internal/external power switch
10. 10

  Raise/lower pushbuttons or toggle switch
11. 11

  Separate fuses to protect the controller and the motor operator
1
2
3
4
5
6
7
8
9
10
11

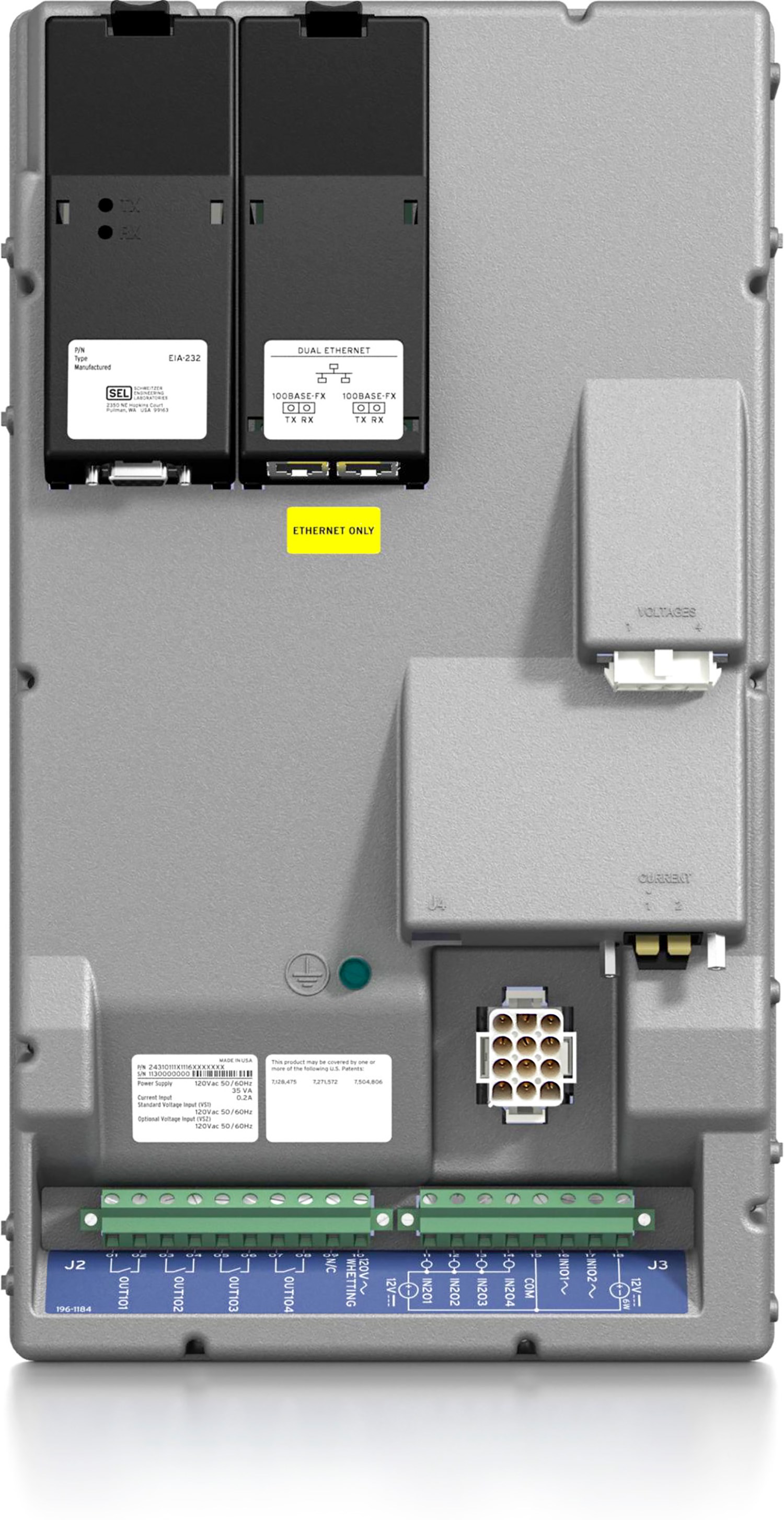

1. 1

  Optional “snap-in” communications cards
2. 2

  Serial communications port
3. 3

  Dual Ethernet communications ports
4. 4

  Voltage input
5. 5

  Chassis ground
6. 6

  Current input
7. 7

  Voltage regulator interface
8. 8

  Connectorized^® I/O
1
2
3
4
5
6
7
8

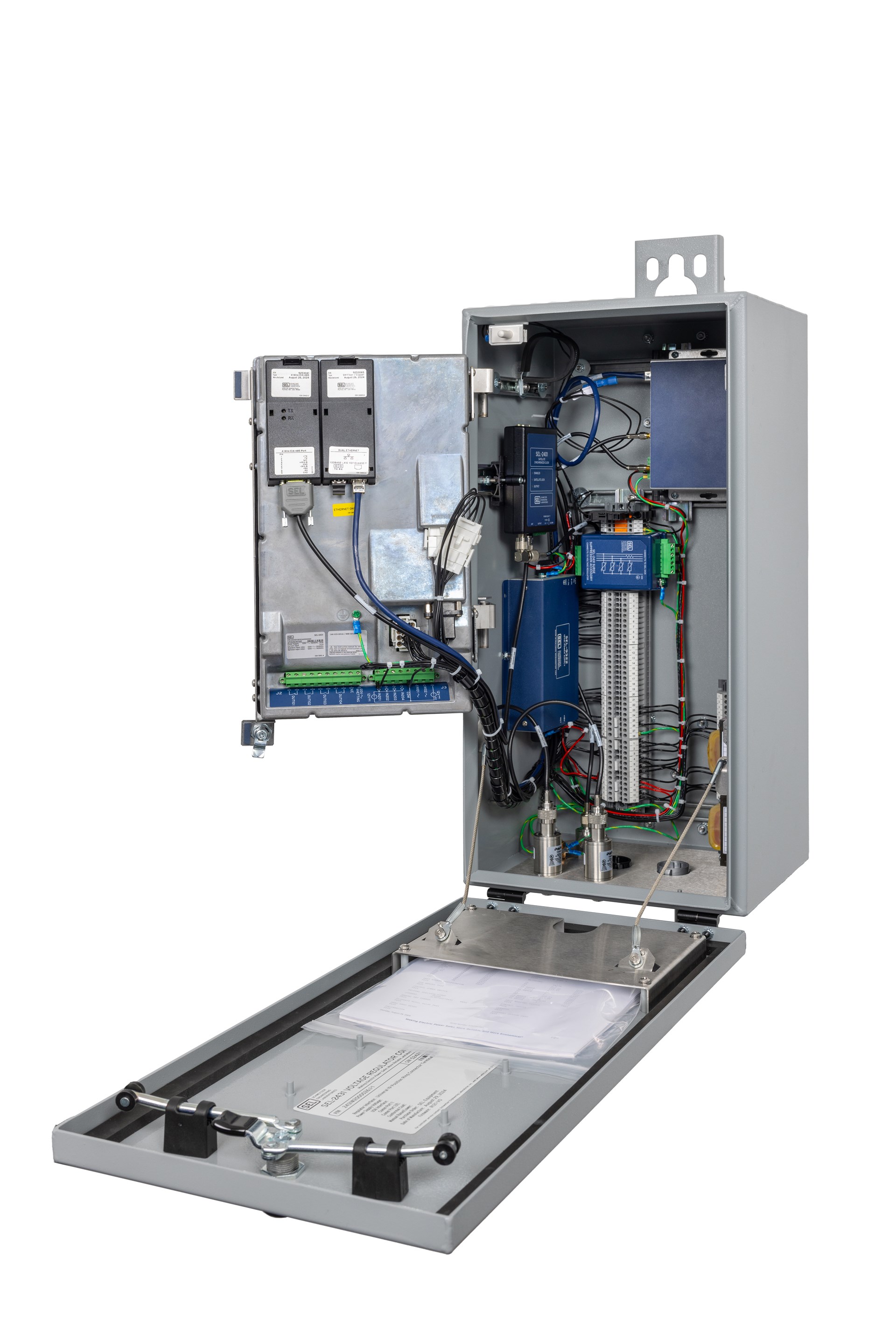

1. 1

  Pole mounting bracket
2. 2

  Door switch
3. 3

  Painted aluminum enclosure
4. 4

  Swing panel hinges
5. 5

  Ratio correction transformers
6. 6

  Accessory device surge arrestors
7. 7

  Document holder
8. 8

  Removable door with padlockable three-point latch
1
2
3
4
5
6
7
8

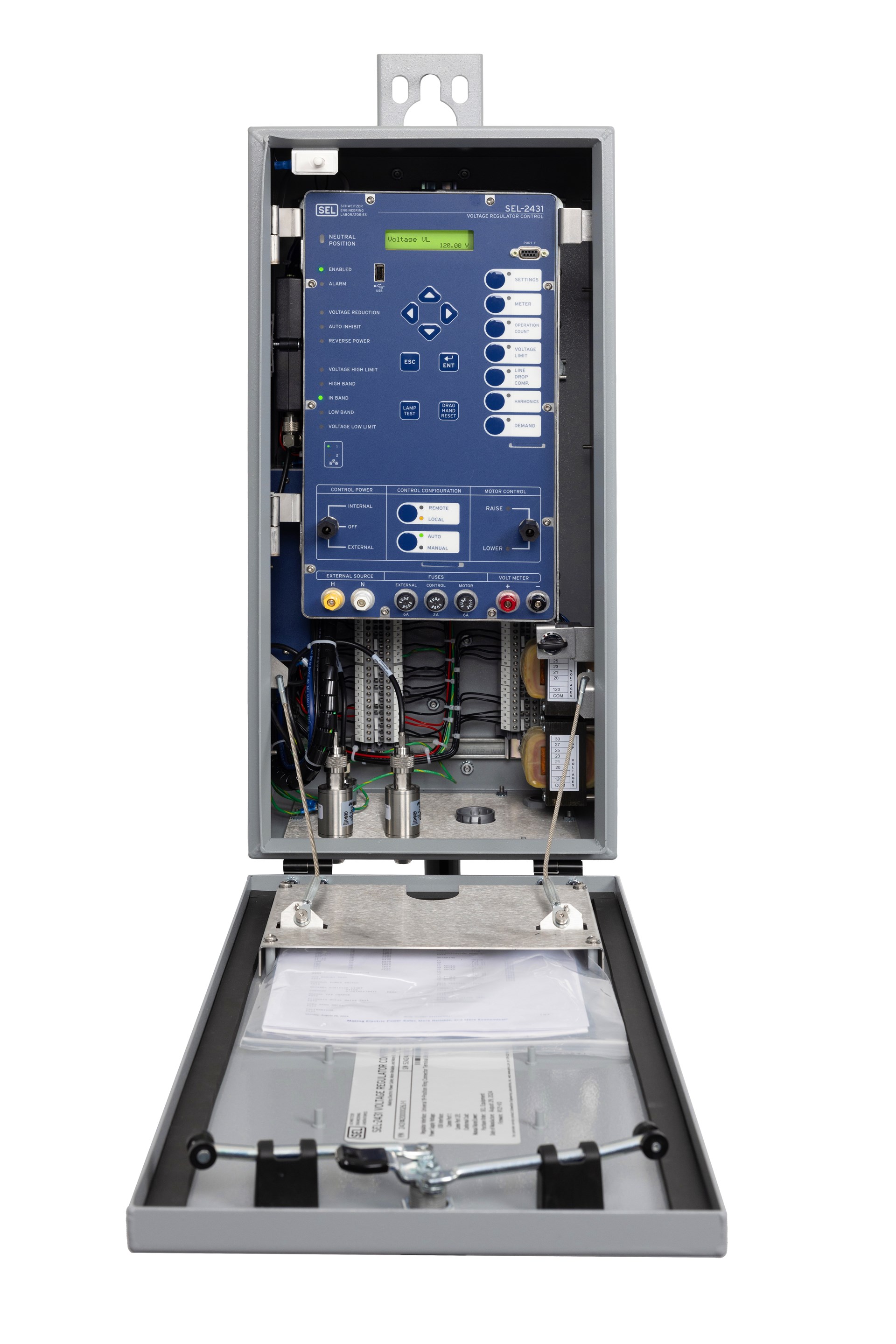

1. 1
