SEL-651R Field-Installed Accessories
| Description | Kit Number for Dual-Door Enclosures | Kit Number for Single-Door Enclosures | Photo | |
|---|---|---|---|---|

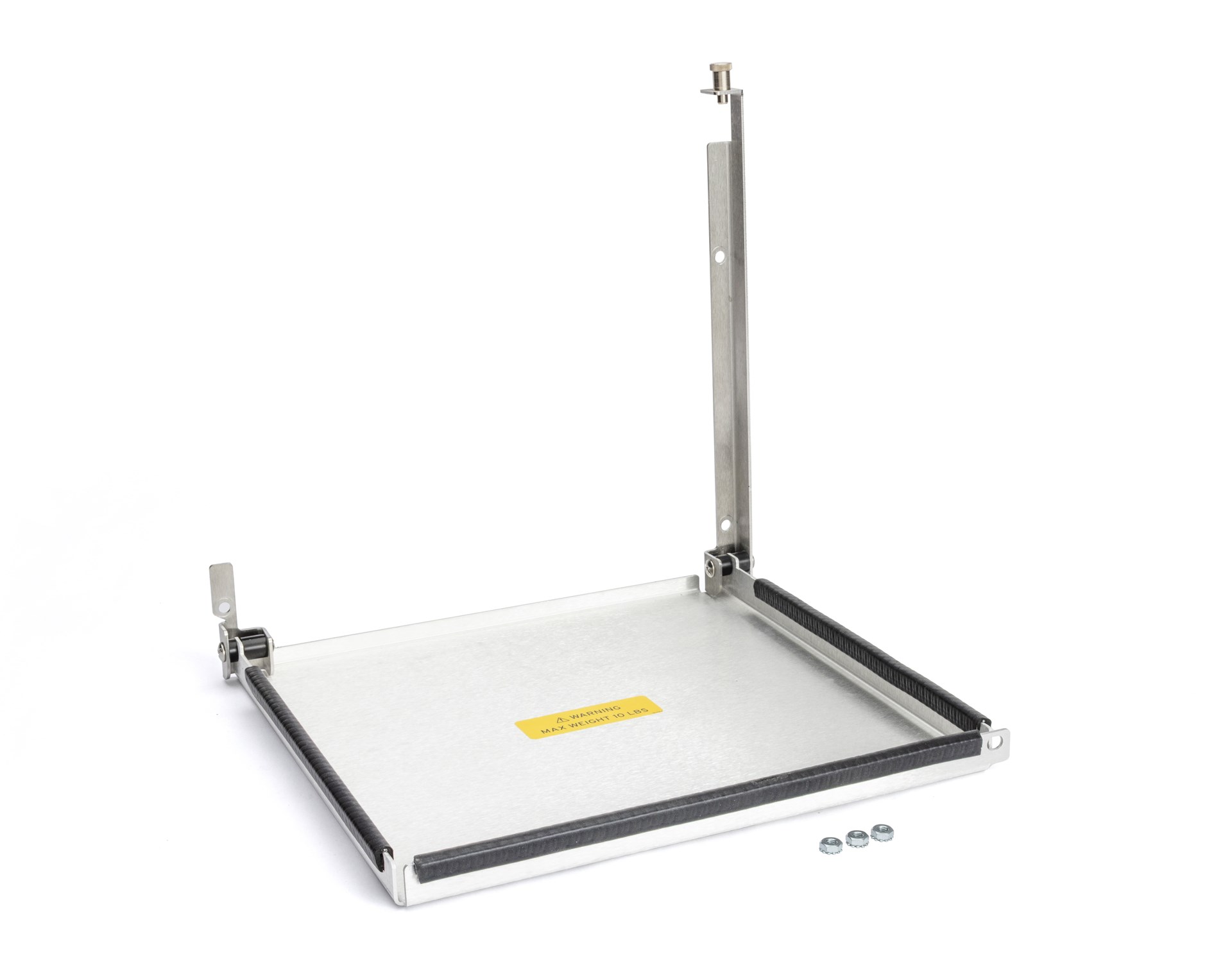

| Laptop Tray Kit | 915900668 | 915900668 |  | |
Dual-Door Enclosures With Door Slides | Single-Door Enclosures Without Door Slides | |||
| Accessory Shelf | 9250550 | 9250567 |  |  |
Dual-Door Enclosures | Single-Door Enclosures | |||

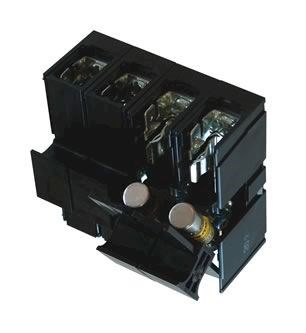

| Voltage Input Fuse Block (secondary voltages) | 9250551 | 9250568 |  |  |
Dual-Door Enclosures | Single-Door Enclosures | |||

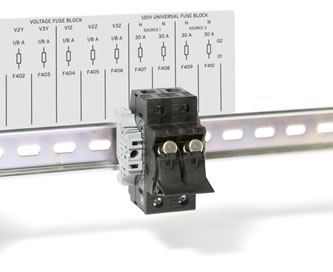

| Universal Fuse Block (incoming power) | 9250552 | 9250569 |  |  |
Dual-Door Enclosures | Single-Door Enclosures | |||
| AC Transfer Switch | 9250553 | 9250570 |  | |
| 100 W Heater | 9250585 | 9250831 (651R-2) 9250586 (651R-0,-1) |  | |

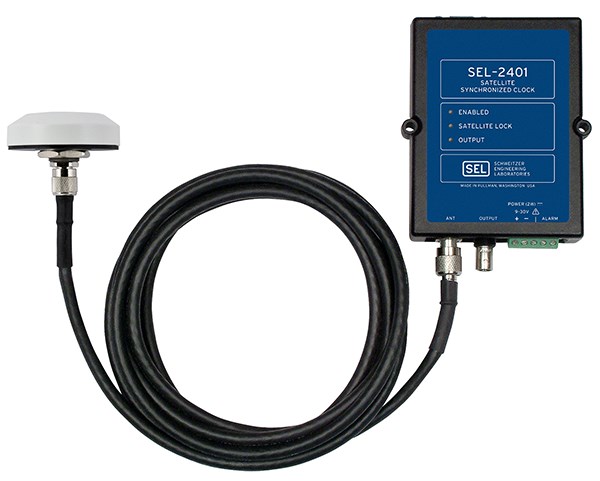

| SEL-2401 Satellite-Synchronized Clock Accessory Kit | 9250593 | 9250595 |  | |
| SEL-2725 Ethernet Switch | Please see SEL-2725 Online MOT and select the appropriate installation accessory, or contact SEL for ordering information. |  | ||
| SEL-3031 Serial Radio Transceiver | Please see SEL-3031 Online MOT and select the appropriate installation accessory, or contact SEL for ordering information. |  | ||
| SEL-3061 Cellular Router | Please see SEL-3061 Online MOT and select the appropriate installation accessory, or contact SEL for ordering information. |  | ||

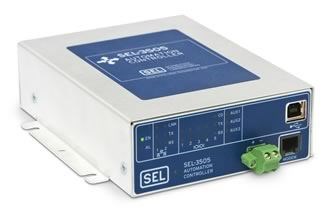

| SEL-3505 Automation Controller | Please see SEL-3505 Online MOT and select the appropriate installation accessory, or contact SEL for ordering information. |  | ||

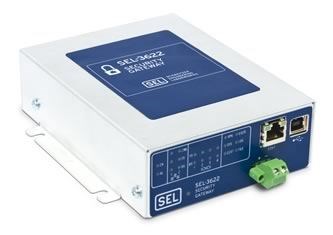

| SEL-3622 Security Gateway | Please see SEL-3622 Online MOT and select the appropriate installation accessory, or contact SEL for ordering information. |  | ||
| 2-Pin Socket for Low-Voltage Close | 9250554 | 9250571 |  | |
| 8-Pin Socket for Voltage Inputs (MS5015, Size 22) | 9250555 | 9250572 |  | |
| 4-Pin Socket for Voltage Inputs (MS5015, Size 22) | 9250692 | 9250691 |  | |
| 3-Pin Socket for Input Power (MS26482, Size 12) | 9250556 | 9250580 |  | |
| 8-Pin Socket for Voltage Inputs (MS26482, Size 12) | 9250557 | 9250581 |  | |

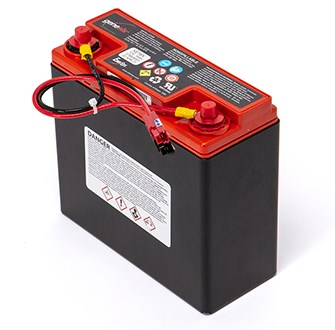

| 16 Ah Replacement Battery (includes C5469) | 915900200 |  | ||

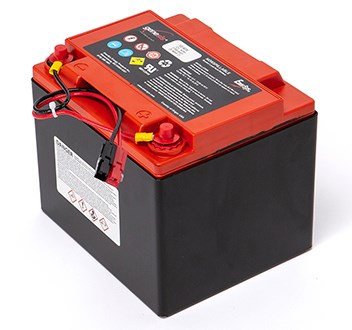

| 40 Ah Replacement Battery (includes C5469) | 915900199 |  | ||
| Security Sleeve (2" diameter); 14-Pin, 19-Pin, 26-Pin, and 32-Pin Interface Control Cables; 2-Pin Low-Voltage Close Cable; 8-Pin Voltage Sensor Cable; 4-Pin Low-Energy Analog (LEA) Input Cable; and 3-Pin Input Power Cable
| 9250011 |  | ||

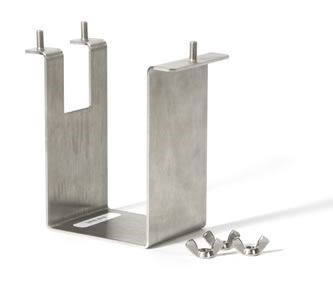

| Security Strap for 42-Pin Multi-Recloser Interface and 32-Pin Tavrida OSM Interface Control Cables | 9250827 |  | ||

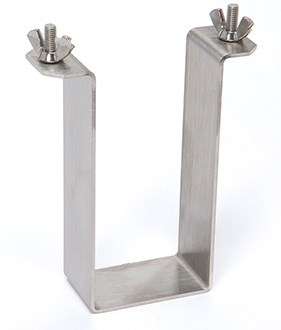

| Security Strap for 24-Pin ABB Interface Control Cables | 9250828 |  | ||

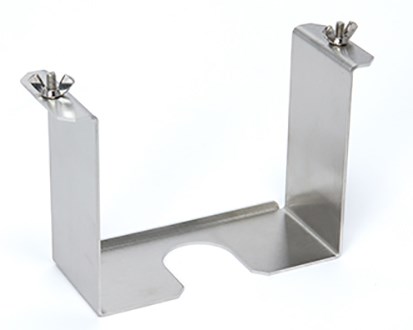

| Security Strap for 40-Pin Siemens SDR Interface Control Cables | 9250829 |  | ||

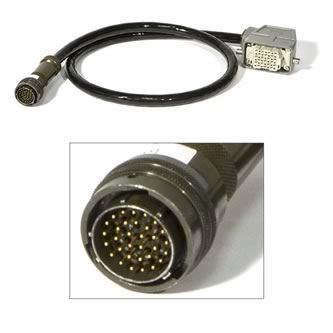

| Control Cable, 42-Pin Female (SEL-651R) to 32-Pin Female (G&W j-box with 32-pin connector and second-generation Elastimold MVR) | C550 |  | ||

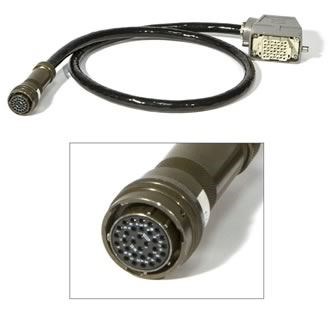

| Control Cable, 42-Pin Female (SEL-651R) to 32-Pin Male (first-generation Elastimold MVR) | C551 |  | ||

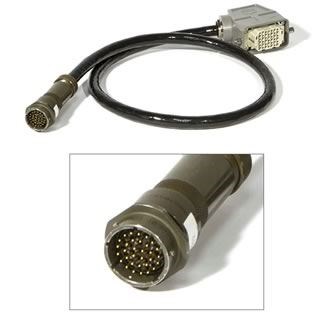

| Control Cable, 42-Pin Female (SEL-651R) to 32-Pin Male (plugs into existing 32-pin cable) | C552 |  | ||

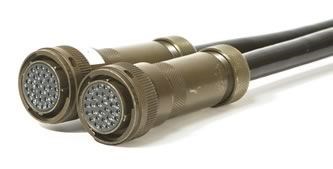

| 32-Pin Control Cable, Female to Female | C553 |  | ||

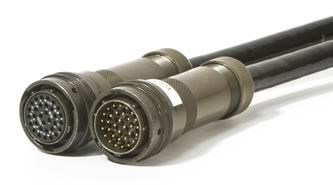

| 32-Pin Control Cable, Female to Male | C524 |  | ||
| 14-Pin Control Cable | C510 |  | ||
| 14-Pin Control Cable, Female to Male (overmolded) | C520 |  | ||

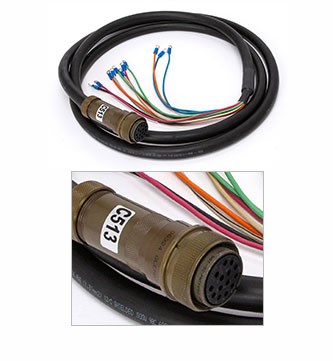

| Control Cable, 14-Pin Female (SEL-651R) to Terminal Block | C513 |  | ||
| Control Cable, 14-Pin Male (recloser) to Terminal Block | C540 | Photo Not Available | ||

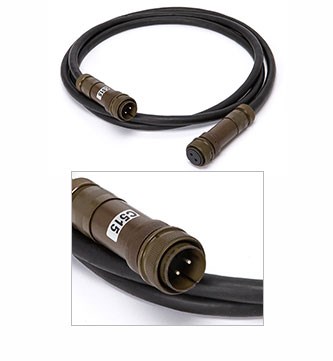

| 2-Pin Low-Voltage Close Cable, Female to Male | C515 |  | ||

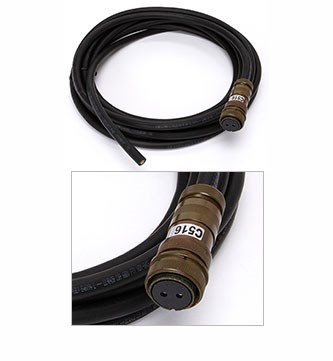

| 2-Pin Female to Unterminated Incoming Power Cable (MS5015, Size 22) | C516 |  | ||

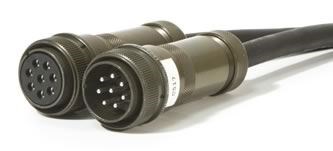

| 8-Pin Voltage Input Cable, Female to Male (MS5015, Size 22) | C517 |  | ||

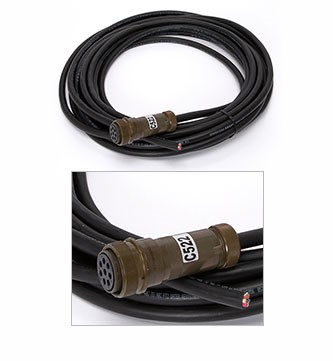

| 8-Pin Female to Unterminated, Voltage Input Cable (MS5015, Size 22) | C522 |  | ||

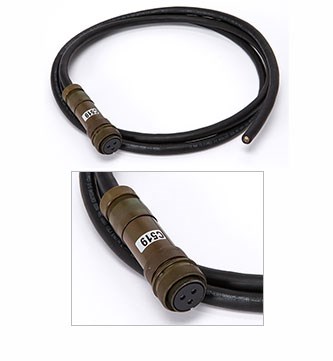

| 3-Pin Female to Unterminated Incoming Power Cable (MS5015, Size 22) | C519 |  | ||

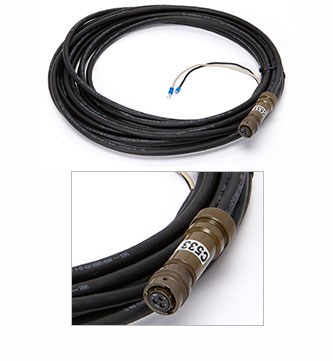

| 3-Pin Female to Unterminated Incoming Power Cable (MS26482, Size 12) | C533 |  | ||

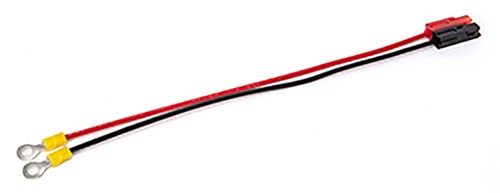

| Cable Assembly, Quick Disconnect to Battery Terminal | C5469 |  | ||
