SEL-651R Installed Accessories

Use the keys below to identify installed accessories located in the 19th and 20th positions of the SEL-651R Part Number.

To order SEL-651R accessories, please refer to the SEL-651R ordering information on configurator page, or contact your SEL sales or customer service representative for assistance.

Description	Key	Photo

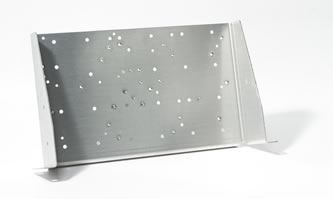

Accessory Shelf	10
		Dual-Door Enclosures	Single-Door Enclosures

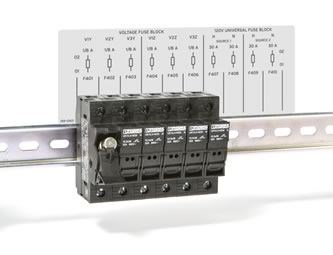

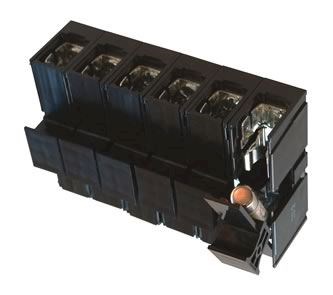

Voltage Input Fuse Block (Secondary Voltages)	11
		Dual-Door Enclosures	Single-Door Enclosures
AC Transfer Switch	13
100 W Cabinet Heater	14
SEL-2401 Satellite-Synchronized Clock (24010XXX0) Accessory	16

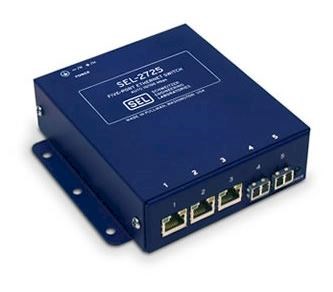

SEL-2725 Ethernet Switch (2725D33XX) Accessory	17
SEL-3031 Serial Radio Transceiver (30310W01XXX) Accessory	18

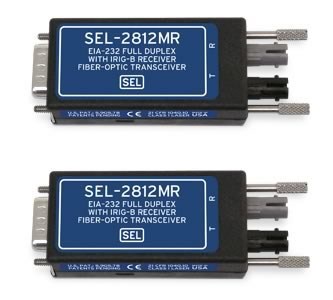

Two SEL-2812MR Fiber-Optic Transceivers	1A

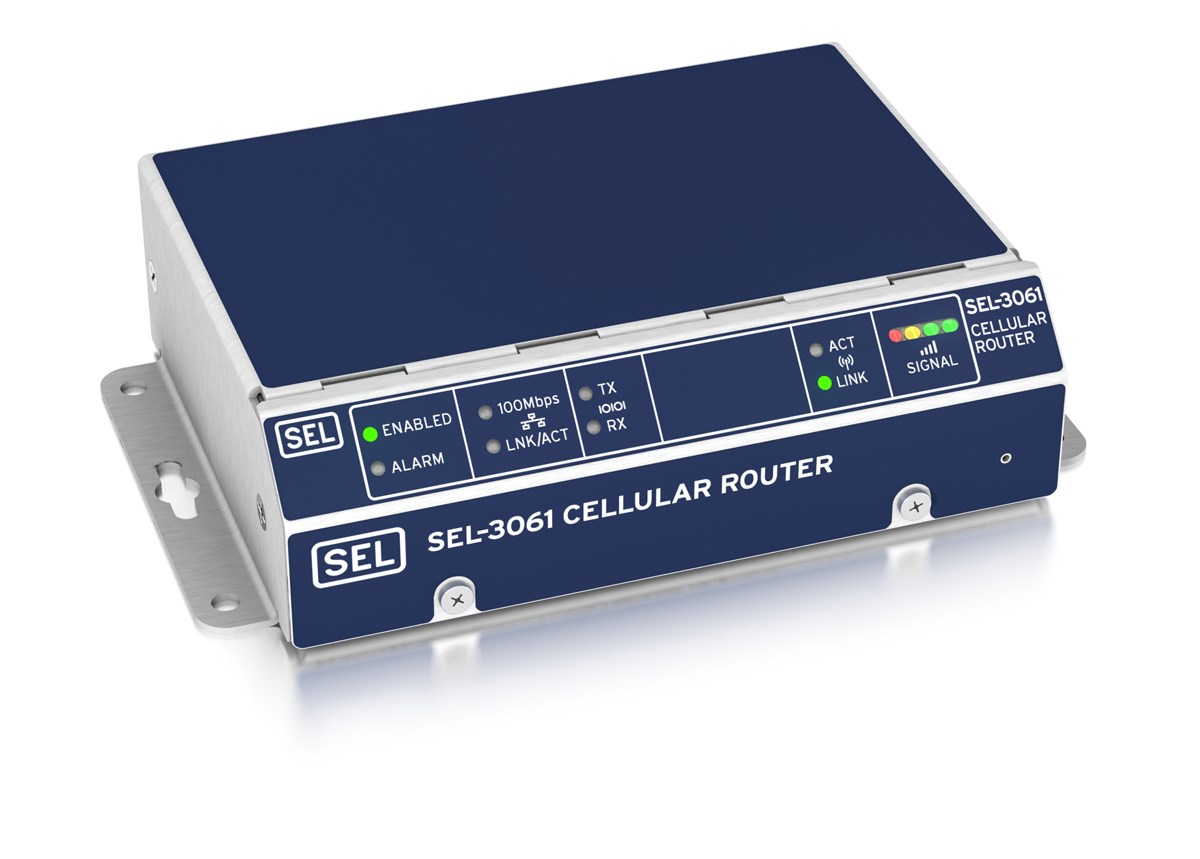

SEL-3061 Cellular Router	1G
2-Pin Socket for Low-Voltage Close	20

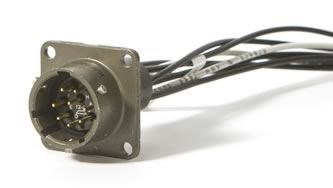

8-Pin Socket for Voltage Inputs (MS5015, Size 22)	21
4-Pin Socket for Low-Energy Analog (LEA) Inputs (MS5015, Size 22)	22

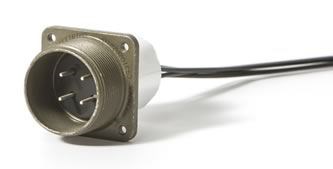

3-Pin Socket for Input Power (MS26482, Size 12)	30
8-Pin Socket for Voltage Inputs (MS26482, Size 12)	C3

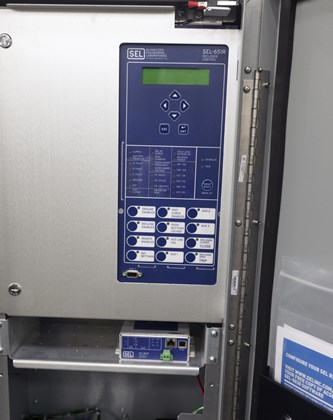

The security package includes the SEL-3622 and a door position indication switch. The door position indication switch is wired to inputs on the SEL-651R and the SEL-3622 allowing reporting in both SCADA and Syslog systems.	EK
Installed Accessory Packages (These packages are combinations of the installed accessories listed above.)
2-Pin Socket for Low-Voltage Close and 8-Pin Socket for Voltage Inputs (MS5105, Size 22)	A0
Universal Fuse Block (Input Power), Voltage Input Fuse Block (Secondary Voltages), AC Transfer Switch, 2-Pin Socket for Low-Voltage Close, and 8-Pin Socket for Voltage Inputs (MS5015, Size 22)	A1
Accessory Shelf, Universal Fuse Block, and 2-Pin Socket for Low-Voltage Close	A3
100 W Heater and 2-Pin Socket for Low-Voltage Close	A4
SEL-2401 Satellite-Synchronized Clock (24010XXX0) Accessory and 2-Pin Socket for Low-Voltage Close	A5
Accessory Shelf, Universal Fuse Block (Incoming Power), 100 W Heater, and 3-Pin Socket for Incoming Power (MS5015, Size 22)	A8
Voltage Input Fuse Block (Secondary Voltages), Universal Fuse Block (Incoming Power), 100 W Heater, SEL-2401 Satellite-Synchronized Clock (24010XXX0) Accessory on Bottom of Accessory Shelf, 2-Pin Socket for Low-Voltage Close, and 8-Pin Socket for Voltage Inputs (MS5015, Size 22)	A9
Universal Fuse Block (Input Power), Voltage Input Fuse Block (Secondary Voltages), AC Transfer Switch, 2-Pin Socket for Low-Voltage Close, 8-Pin Socket for Voltage Inputs (MS5015, Size 22), and Door Switch Wired to Input	AA
Two 3-Pin Sockets for Input Power (MS26482, Size 12) and AC Transfer Switch	B0
Two 3-Pin Sockets for Input Power (MS26482, Size 12), 8-Pin Socket for Voltage Inputs (MS5015, Size 22), and AC Transfer Switch	B1
Accessory Shelf, Universal Fuse Block (Input Power), and 3-Pin Socket for Input Power (MS26482, Size 12)	B2
Accessory Shelf, Universal Fuse Block (Input Power), 3-Pin Socket for Input Power (MS26482, Size 12), and 100 W Cabinet Heater	B3
Accessory Shelf and 3-Pin Socket for Input Power (MS26482, Size 12)	B4
Accessory Shelf, Universal Fuse Block (Incoming Power), Two 3-Pin Sockets for Input Power (MS26482, Size 12), and AC Transfer Switch	B6
Accessory Shelf, Voltage Input Fuse Block (Secondary Voltages), Universal Fuse Block (Incoming Power), Two 3-Pin Sockets for Input Power (MS26482, Size 12), AC Transfer Switch, and 100 W Heater	B7
3-Pin Socket for Input Power (MS26482, Size 12) and 100 W Heater	B9
AC Transfer Switch, SEL-2401 Satellite-Synchronized Clock (24010XXX0) Accessory, and Two 3-Pin Sockets for Input Power Supply	BA
8-Pin Socket for Voltage Inputs (MS26482, Size 12), 5-Pin Socket for AC Input (MS5015, Size 22), and AC Transfer Switch	C4
3-Pin Socket for Input Power (MS26482, Size 12) and 8-Pin Socket for Voltage Inputs (MS26482, Size 12)	C7
Accessory Shelf and Voltage Input Fuse Block (Secondary Voltages)	D2
100 W Cabinet Heater and SEL-2401 Satellite-Synchronized Clock (24010XXX0) Accessory	D3
100 W Cabinet Heater and Accessory Shelf	D4
Voltage Input Fuse Block (Secondary Voltages), 100 W Cabinet Heater, and SEL-2401 Satellite-Synchronized Clock (24010XXX0) Accessory	D5
Voltage Input Fuse Block (Secondary Voltages) and SEL-2401 Satellite-Synchronized Clock (24010XXX0) Accessory	D6
100 W Heater and AC Transfer Switch	D8
SEL-2401 Satellite-Synchronized Clock (24010XXX0) Accessory and SEL-3031 Serial Radio Transceiver (30310W01XXX) Accessory	D9
SEL-2401 Satellite-Synchronized Clock (24010XXX0) Accessory and 3-Pin Socket for Input Power Supply (MS26482, Size 12)	DA
Accessory Shelf and AC Transfer Switch	DC
Accessory Shelf, Voltage Input Fuse Block, Universal Fuse Block, and 100 W Heater	DE
SEL-2401 Satellite-Synchronized Clock Accessory (24010XXX0), Voltage Input Fuse Block, Universal Fuse Block and 100W Heater	G5
Bundled Accessories (Shipped in Box With SEL-651R but Not Installed on the Control): Enter the two digits shown in the last two positions of the part number.
None	XX
SEL-C553 40-Foot 32-Pin Control Cable, Female to Female; and SEL-C533 40-Foot 3-Pin AC Input Power Cable (MS26482, Size 12)	A2
Security Sleeve (2" Diameter)	01
Two Security Sleeves (2" Diameter)	02
Three Security Sleeves (2" Diameter)	03
Four Security Sleeves (2" Diameter)	04
Five Security Sleeves (2" Diameter)	05
Security Strap	06
Security Strap and One Security Sleeve (2" Diameter)	07
Security Strap and Two Security Sleeves (2" Diameter)	08
Security Strap and Three Security Sleeves (2" Diameter)	09
Security Strap and Four Security Sleeves (2" Diameter)	10
