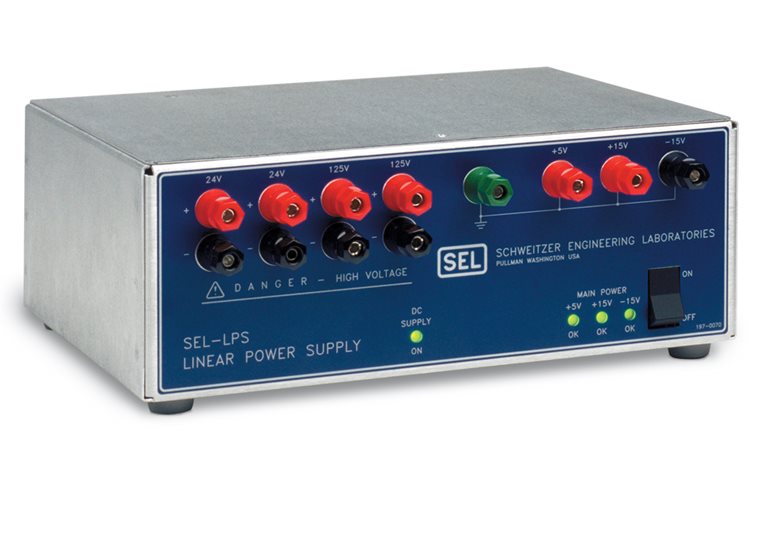

SEL-LPS

Linear Power Supply

Provide auxiliary dc power to your protective relays in the classroom or lab. The SEL-LPS Linear Power Supply is backed by our 10-year worldwide warranty.

Starting At

$980

Configure

Request a Follow-Up

How can we help you?*

(0/250)

First Name*

Last Name*

Business Name*

Country*

City*

State*

Business Phone

Business Email*

*Required

Request a Follow-Up

The SEL-LPS is a general-purpose dc supply with two 24 Vdc and two 125 Vdc unregulated sources that can be combined to produce 24, 48, 125, or 250 Vdc at 50 VA. Low-voltage outputs supply +5 Vdc (500 mA), +15 Vdc (250 mA), and –15 Vdc (250 mA) of regulated power.

Details

Compact desk/benchtop power supply for protective relay auxiliary power.
Safe solution to powering relays in laboratories, classrooms, and offices.
Four relay auxiliary power outputs.
- Two 24 Vdc: connect in series for 48 Vdc.
- Two 125 Vdc: connect in series for 250 Vdc.
Three regulated electronic-level outputs: +5 and ± 15 Vdc.

The Firmware IDs for older versions of the firmware can typically be found in Appendix A of the instruction manual.
